Access to Elasticsearch with Cerebro via SSL+LDAP

Rafael Martinez Guerrero
Words: 843
Reading time: 4 min.
elk • elasticsearch • sysadm • english

One of the main plugins we were using with our 2.x Elasticsearch cluster was KOPF. This plugin was a web interface to the Elasticsearch API and it was an easy way of performing common tasks on our Elasticsearch cluster.

When we upgraded our Elasticsearch cluster to version 5.x, we could not continue using this plugin because it was not longer supported. The good thing was that the author of KOPF, Leonardo Menezes, had a new project called “CEREBRO” to offer an alternative to KOPF when running Elasticsearch 5.x.

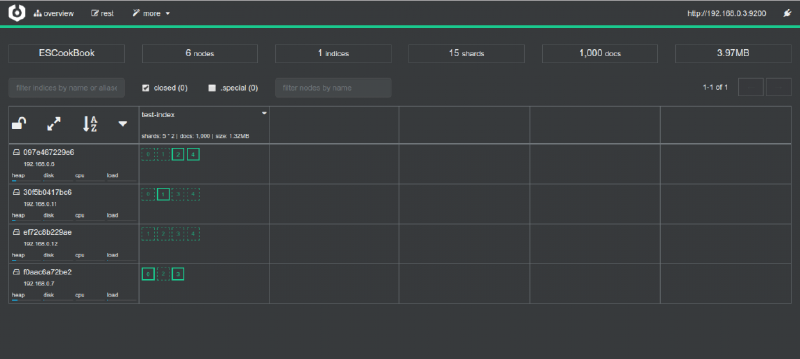

“CEREBRO” is an Elasticsearch web admin tool built using Scala, Play Framework, AngularJS and Bootstrap. It is equivalent to KOPF with some extra new features.

“CEREBRO” is easy to install and use but at the moment of writing this article it lacks a number of things to be accessed and administrated in a professional way:

  • CEREBRO will start a service on a defined port, being available on this port but without SSL support.
  • It has a partial LDAP integration, but we could not make work in our infrastructure. This could be our fault, we did not use time to try to debug this issue.
  • It doesn’t have any type of package RPM/DEB to be installed and maintain.
  • It doesn’t have any configuration to administrate the service in a easy way.

We use a server with RHEL7 to run CEREBRO and this is what we have done to try to fix all these administrative shortcomings without using so much time. Maybe you will have to adjust some of the steps if you are using another linux distribution:

  • Download the last version of CEREBRO from https://github.com/lmenezes/cerebro and save it under /opt/cerebro.

    [root@elastic ~]# ls -l /opt/cerebro/
total 50012
drwxr-xr-x. 6 apache apache       99 Jun 19 16:28 cerebro-0.6.5
lrwxrwxrwx. 1 apache apache       13 May  9 15:52 current -> cerebro-0.6.5

  • Create the CEREBRO configuration file /opt/cerebro/current/conf/application.conf with this content (you will have to customize some parameters to work in your infrastructure):

    # Secret will be used to sign session cookies, CSRF tokens and for other encryption utilities.
# It is highly recommended to change this value before running cerebro in production.
secret = "ki:s:[[@=Ag?QI`W2jMwsdjhhkljqwiuiueqeakjhJHKJASDKJ123kjASTSAHGhghga"

# Application base path
basePath = "/

# Defaults to RUNNING_PID at the root directory of the app.
# To avoid creating a PID file set this value to /dev/null
#pidfile.path = "/var/run/cerebro.pid"

# Rest request history max size per user
rest.history.size = 50 // defaults to 50 if not specified

# Path of local database file
data.path = "./cerebro.db"

# Authentication
auth = {
}

# A list of known hosts
hosts = [
  {
    host = "http://elasticsearch-prod.example.org:9200"
    name = "ES PRODUCTION"
  }
  {
    host = "http://elasticsearch-utv.example.org:9200"
    name = "ES UTV"
  }
]

  • Install the packages httpd, mod_ssl and java-1.8.0-openjdk

  • Configure SElinux with these commands.

    # semanage port -a -t http_port_t -p tcp 9200
# setsebool -P httpd_can_network_connect 1
# setsebool -P nis_enabled 1

  • Create the file /etc/systemd/system/cerebro.service with this content:

         [Unit]
     Description=Elasticsearch - Cerebro
     Wants=network-online.target
     After=network-online.target

     [Service]
     Environment=HOST=127.0.0.1
     Environment=PORT=9200

     WorkingDirectory=/opt/cerebro/current

     User=apache
     Group=apache

     ExecStart=/opt/cerebro/current/bin/cerebro \
                                            -Dhttp.port=${PORT} \
                                            -Dhttp.address=${HOST}

     # Connects standard output to /dev/null
     StandardOutput=null

     # Connects standard error to journal
     StandardError=journal

     # Shutdown delay in seconds, before process is tried to be killed with KILL (if configured)
     TimeoutStopSec=0

     # SIGTERM signal is used to stop the Java process
     KillSignal=SIGTERM

     # Java process is never killed
     SendSIGKILL=no

     # When a JVM receives a SIGTERM signal it exits with code 143
     SuccessExitStatus=143

     [Install]
     WantedBy=multi-user.target
     ```

  • Run the command systemctl daemon-reload

  • Configure apache as a proxy to handle all access via HTTPS, provide LDAP authentication, and to forward the traffic to the CEREBRO service running on 127.0.0.1:9200. Create the file ‘/etc/httpd/conf.d/elastic-mgmt.conf’ with this content (you will have to customize some parameters to work in your infrastructure):

      <virtualhost *:80>

    ServerName elastic-mgmt.example.org
    ServerAlias elastic-mgmt

    RewriteEngine On
    RewriteCond %{HTTPS} off
    RewriteRule (.*) https://%{HTTP_HOST}%{REQUEST_URI}

  </virtualhost>

  <virtualhost *:443>

     ServerName elastic-mgmt.example.org
     ServerAlias elastic-mgmt

     ProxyRequests Off
     ProxyPreserveHost On
     ProxyReceiveBufferSize 4096

     <proxy>
        Order deny,allow
        Allow from all
     </proxy>

      AllowEncodedSlashes On
      ProxyPass        /    http://127.0.0.1:9200/
      ProxyPassReverse /    http://127.0.0.1:9200/

      <location />
         Order allow,deny
         Allow from <YOUR_CLIENT_IP>
      </location>

   <ifmodule authnz_ldap_module>
    <locationmatch "/">
     AuthType Basic
     AuthName "Elasticsearch Cerebro [Note: Authenticate with your LDAP-user]"
     AuthBasicProvider ldap

     AuthLDAPURL <YOUR_LDAP_URL> TLS

     AuthLDAPGroupAttribute memberUid
     AuthLDAPGroupAttributeIsDN off
     require ldap-group <YOUR_LDAP_GROUP>
    </locationmatch>
   </ifmodule>

   SSLEngine on
   SSLProtocol -ALL +TLSv1.2 +TLSv1.1
   SSLProxyEngine on
   SSLCipherSuite HIGH:!MEDIUM:!aNULL:!MD5:!RC4:!DES
   SSLHonorCipherOrder on

   SSLCertificateFile /etc/pki/tls/certs/elastic-mgmt.example.org.crt
   SSLCertificateKeyFile /etc/pki/tls/private/elastic-mgmt.example.org.key
   SSLCACertificateFile /etc/pki/tls/certs/CA.crt

   BrowserMatch "MSIE [2-5]" \
           nokeepalive ssl-unclean-shutdown \
           downgrade-1.0 force-response-1.0

  </virtualhost>

  • Finally run these commands to configure and start the services:

      # systemctl enable cerebro
  # systemctl enable httpd
  # systemctl start cerebro
  # systemctl start httpd

Now you should be able to access CEREBRO via the ServerName you have defined in /etc/httpd/conf.d/elastic-mgmt.conf, in our case: https://elastic-mgmt.example.org/.

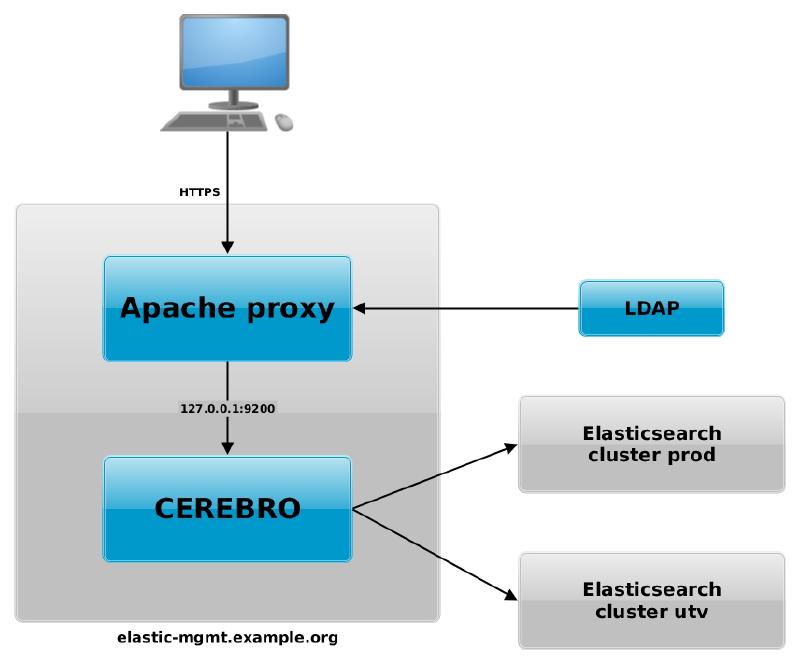

A graphical representation of this configuration is available in this diagram:

Remember that you should always run your Elasticsearch cluster in a dedicated network and that the access to this network should be restricted only to servers under your control.

Thanks to Leonardo Menezes for this open source software that give us the opportunity of interacting with the Elasticsearch API in a easy way.
